Cat. 6 90° Shielded KJ

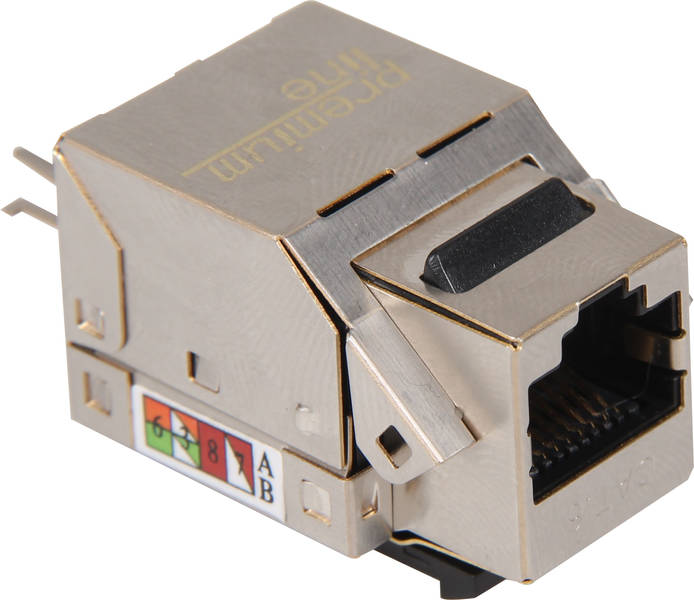

Category 6 90° Shielded Keystone Jack

106211010

Premium-Line 90° shielded Keystone Jack in fully shielded design, optimizes shield effectiveness protection from EMI. Dual IDC connector can accept 22-26 AWG solid cables, supports T568 A&B wiring, and it uses 110 or Krone tools for termination.

Premium-Line Category 6 shielded Keystone Jack performance conform to ANSI/TIA-568-C.2, ISO/IEC 11801 and EN50173-1 Category 6 specifications, supports the channel link bandwidth up to 250MHz.

Physical Characteristics

JackPhosphor bronze, 50μ inch gold plating
over nickel in contact area
IDC100μ inch nickel plated over phosphor bronze
Shielded Cover50~60μ inch nickel plated over phosphor bronze

Electrical Characteristics

Dielectric Strength1000V RMS for 1min
Current Rating1.5Amp Max.
Insulation Resistance10MΩ Min.
Contact Resistance2mΩ per contact
Temperature Range-10°C to 60°C
Humidity10%~90%; non condensing

Applications

  • 1000BASE-TX Gigabit Ethernet
  • 1000BASE-T Gigabit Ethernet
  • 100BASE-TX Fast Ethernet.
  • 10BASE-T Ethernet.
  • Voice, Video and other applications.

All the products are verified to the electrical characteristics required in the directive.

ORDERING INFORMATION:

Part NO.                        106211010

Description                  Premium Line Cat.6 90° shielded keystone jack, dual type IDC

Packing                         1pc/ PE bag, 40pcs/ box, 400 pcs/carton
